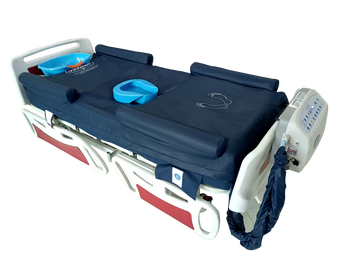

ObboMed OB-3600 UltraAir Mattress Alternating Pressure Ulcer Prevention Mattress with Low Air Loss Air
)
Product Description
From: Compression Medical Distributors, Inc.
Innovation feature:
Patented “Easy Go” Bedpan Function:
The patented “Easy Go” bedpan feature allows caregivers to operate a single-touch button that quickly deflates 4 air cells beneath the buttocks, creating a recessed opening to accommodate a bedpan in just 20 seconds. This innovative bedpan system is designed for in-bed toileting, significantly reducing patient discomfort during transfers and minimizing the caregiver’s physical workload. Ideal for bedridden patients, this feature enhances both safety and hygiene.
Patented “Easy Go” Shampoo Function:
The patented “Easy Go” shampoo feature enables in-bed hair washing through a one-touch button operation. The head section of the mattress gently deflates to form a recessed area, allowing a shampoo basin to be positioned within 20 seconds. This simplifies hair washing for immobile patients, avoids unnecessary movement, and provides greater comfort for both patient and caregiver.
Patented Inflatable Air-Filled Guardrails
Our patented inflatable air-filled guardrails offer a safe, supportive, and patient-friendly alternative to traditional metal side rails. Mid-section opening guardrail allows safe and easy patient entry and exit. Operated with a single button, these soft yet firm air-filled rails can be inflated or deflated as needed. They are designed to prevent falls without the risk of injury, such as bruising, commonly associated with metal guardrails—making them perfect for long-term care or home health settings.
15° Self-lateral Rotation:
Utilizing specialized air cells, the mattress provides a 15-degree self-lateral rotation by continuously inflating and deflating specific cells. This gentle wave-like motion redistributes the user’s weight, helps improve sleep, alleviates pressure points, stimulates blood circulation, and aids in the prevention of bedsores.
Multiple Rotation Angles (15°/25°/40°):
Function : 15°/25° Left Turn / 25° Right Turn / 25° Auto Turn / 40° Left Turn
Designed to accommodate various patient needs, the mattress offers multiple rotation angles of 15°, 25° Right / 25°Left / 25°Auto Rotation, 40° Auto Rotation. This feature increases patient activity, assists in lung function by facilitating phlegm expulsion, reduces the risk of pulmonary infections, and enhances overall physical therapy outcomes.
OB-3600 Mattress dimension and weight specifications:
OB-3600 Mattress Dimension:
80”L x 36”W x 10-14”H
200cm L x 90cm W x 25-35cm H
Weight Capacity:
660 Pounds
300 Kgs
Mattress Weight
30 Pounds
13.6 Kgs
Control Unit Weight
18.5 Pounds
8.4 Kgs
Functions
Alteration, Easy-Go Bedpan and Shampoo, 4 inch Inflatable Guardrail, 15° Self-lateral Rotation,
25° Right / Left / Auto Rotation, 40° Lateral Rotation, Air Flow Fan
Rotation Angles
15, 25, and 40 Degrees
Alternating Cycle Time
10, 20, 30, and 40 Minutes
Rotation Circle
10, 20, 30, 40, 60, 90, and 120 Minutes
Pump
50 LPM
50 LPM
Low Air Loss (LAL)
23 LPM
23 LPM
Unit Package Dimensions
19.3″L x 16.9″ W x 27.6″ H
50cm L x 43cm W x 70cm H
Unit Package Weight
52.9 Pounds
24 Kgs
Warranty
1 Year on Top Cover, 2 Years on Control Unit and Mattress
