From: Compression Medical Distributors, Inc.

Rhythm Multi Plus Mattress System is a low to medium risk system for patients who are at risk of developing Pressure
Ulcers according to your sound clinical judgment. Rhythm Multi Plus can also be used for patients who have an existing
stage 1, 2, 3 and 4 pressure ulcers, in conjunction with your hospitals policy on pressure area management.

PRESSURE MAPPING.

Rhythm Multi Plus provides constant low
pressure by redistributing the patient’s
pressure over a greater area than a standard
mattress.

MATTRESS REPLACEMENT SPECS.

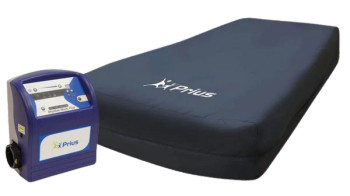

Model No: Rhythm Multi Plus
Dimensions: (L)80”x (W)36”, 42", 48" x (H)8”
Weight: 28.6 lbs
Weight Capacity: 500, 750, 1000 lbs
Cell Material: Black Nylon with PU Coating
Cell Number: 18 cells
Cover Material: Blue Nylon with PU coating finish
Base Material: Black Polyester with PVC coating
CPR Quick Release System

MASTER CONTROL UNIT SPECS.

Dimension: (L)10.9”x (W)6.7”x (H)12.9”
Weight: 14.9 lbs
Rating Voltage: 110-120 volts
Max Current: 5A
Rating Frequency: 60Hz
Cycle Time: 3~95 mins

Static / Pulsation function
3 in 1 alternation
Min/Max Pressure: 15~52 mmHg +/- 4 mmHg
8 Digital Adjustable Comfort Control

Protection Type: Class I, Type BF
Power Failure Alarm: Visual / Audio

User-Friendly Control Panel
Fowler Function
